3D Wheel Alignment System

PRO ALIGN 3D

Experience unmatched precision with ProAlign 3D, the next-generation wheel alignment solution designed for modern workshops. Engineered with advanced 3D imaging technology, it ensures faster, more accurate alignments with minimal effort.

- Stay Straight, Drive Ahead

Key Features

  • High-Definition Cameras: Capture every wheel angle with superior clarity and accuracy.
  • User-Friendly Software: Simplified interface for smooth and efficient operation.
  • Fast & Reliable Results: Minimize downtime and maximize throughput.
  • Durable Build Quality: Robust design built to endure demanding workshop environments.
  • Versatile Compatibility: Seamlessly supports a wide range of vehicles and wheel types.

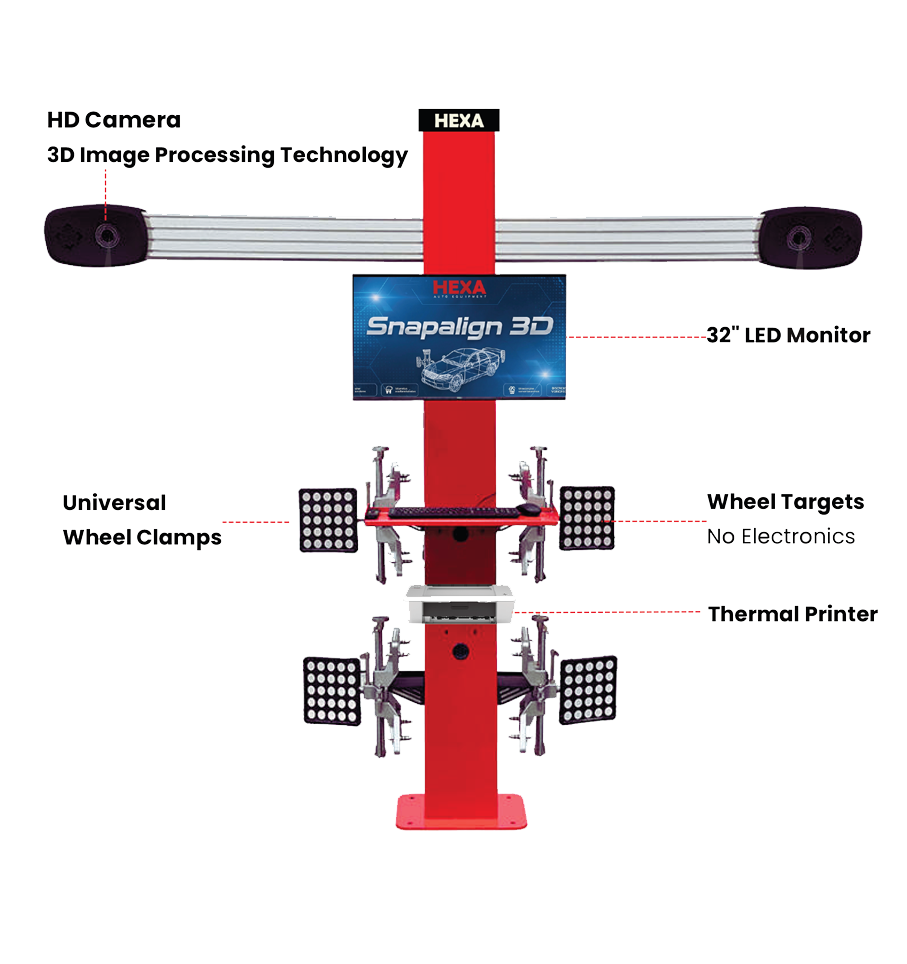

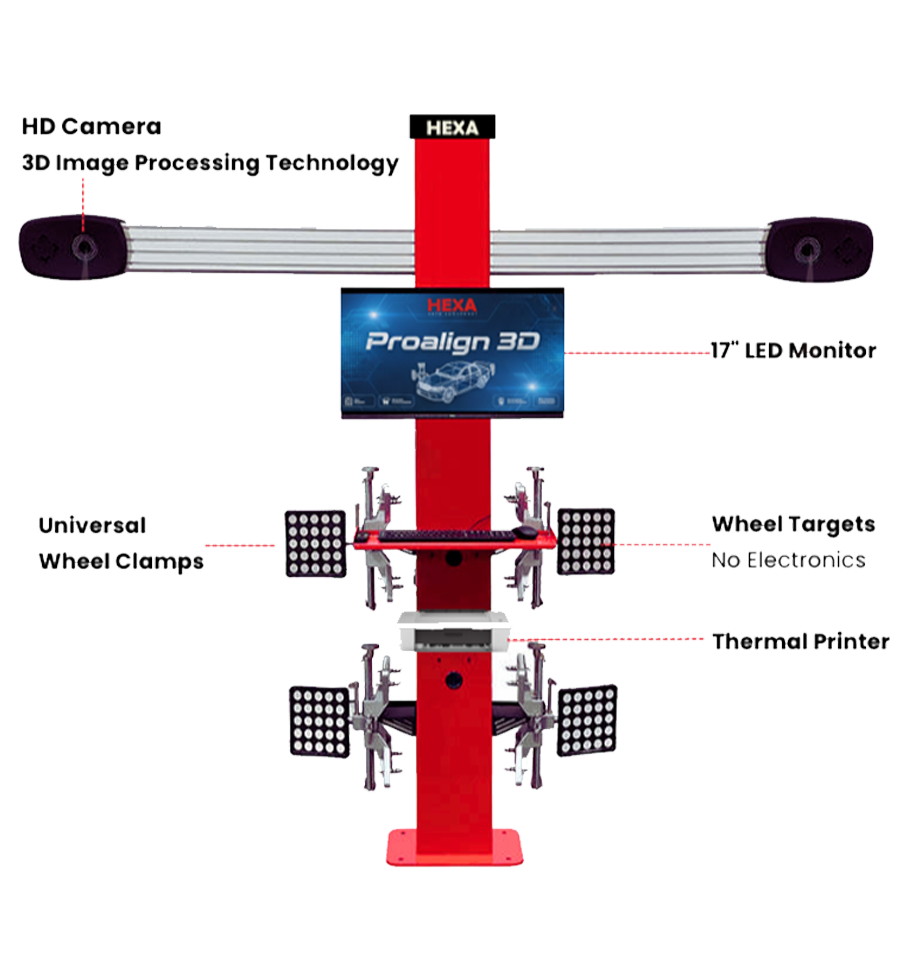

3D Wheel Aligner

Technical Specifications

Camber (F/R)±15′00″ (±00°02′)
Caster±28′00″ (±00°05′)
Kingpin Inclination±25′00″ (±00°05′)
Toe (F/R)±20′00″ (±00°02′)
Total Toe±40′00″ (±00°04′)
Toe Out on Turn±25′00″ (±00°05′)
Setback (F/R)±25′00″ (±2 mm)
Thrust Angle±05′00″ (±00°02′)
Runout±10′00″ (±00°02′)
Included Angle±40′00″ (±00°05′)
Track Width Difference±300 mm (±5 mm)

Universal Wheel Clamps

Engineered to fit any wheel between 12″–24″ rim diameter — including alloys, steel rims, and run-flat tyres. Built for strength, precision, and versatility, ensuring stable and secure mounting during every alignment.

No Electronics on Wheels

Smart, simplified design means:

  • Durable and low-maintenance operation
  • Accurate, faster, and more consistent alignment results
  • Robust performance even in demanding workshop conditions

Accessories Included

  • Wheel Clamps – 4 Nos
  • Targets – 4 Nos
  • Turn Tables – 2 Nos
  • Wheel Stoppers – 2 Nos
  • Steering Lock – 1 No
  • Brake Pedal Lock – 1 No
  • PC & LED Monitor
  • Optional: Printer (1 No), Wheel Clamp Adaptor (12″–26″) – 16 Nos

Guaranteed Performance

Special electrically isolated coating ensures long-term durability, operator safety, and full EV compatibility.

Customise Your Colour: RED | BLUE | GREY
